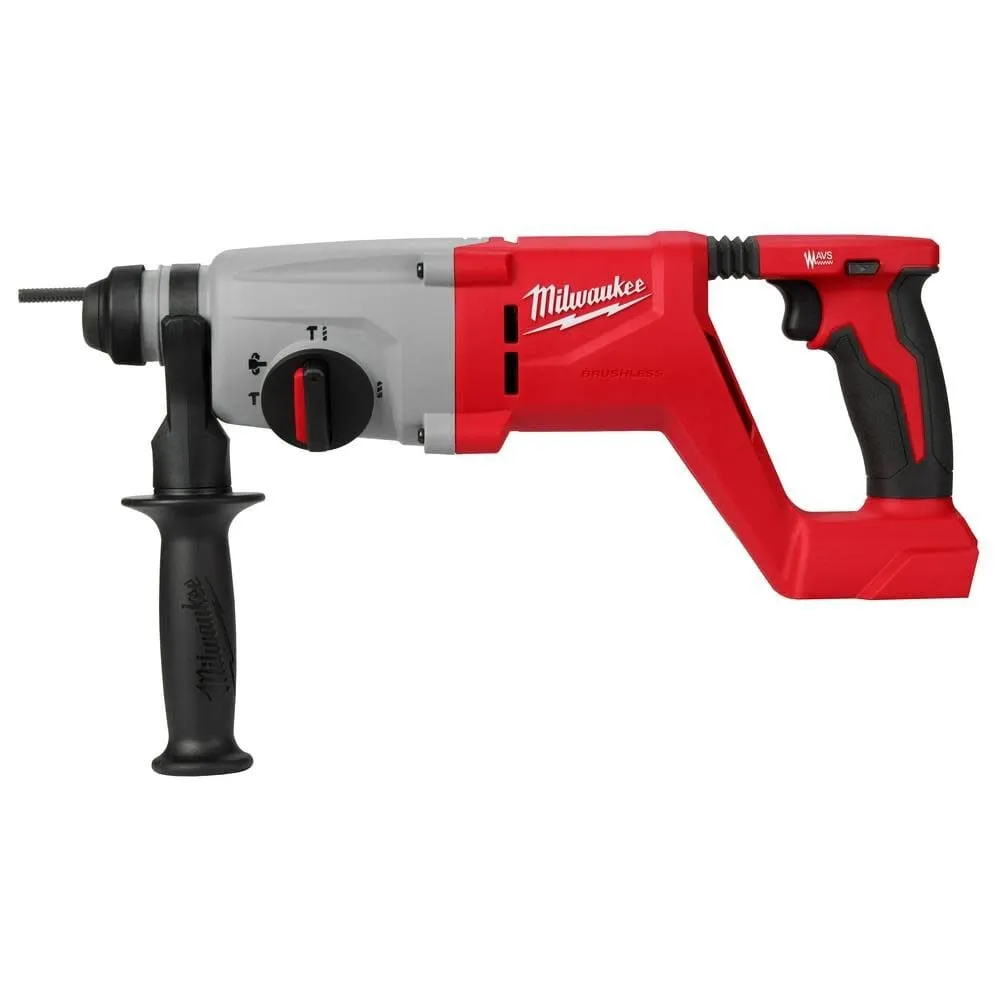

The MILWAUKEE® M18™ Brushless 1” SDS Plus D-Handle Rotary Hammer delivers Corded Power & More Productivity without the hassle of cords. The Milwaukee cordless rotary hammer drills 3/8” x 2” holes faster than corded D-Handle rotary hammers. The Brushless motor delivers 1.95 ft-lbs of impact energy, 1,270 RPM, and 4,580 BPM. The in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. Milwaukee AVS Anti-Vibration System minimizes vibration for maximum comfort. The lightweight design of this tool reduces user fatigue throughout the work day at 6.9 lbs when paired with the Milwaukee M18™ REDLITHIUM™ XC5.0 Battery (not included). The Milwaukee M18™ Brushless 1” SDS Plus D-Handle Rotary Hammer drills up to (100) 3/8”x 2” holes per charge when paired with the M18™ REDLITHIUM™ XC5.0 battery (not included). For onboard OSHA Table 1 Compliance, pair with the MILWAUKEE® M12™ HAMMERVAC™ Universal Dust Extractor (2509-22). This Milwaukee cordless D-Handle rotary hammer is a part of the M18™ System, which is fully compatible with over 250 solutions.

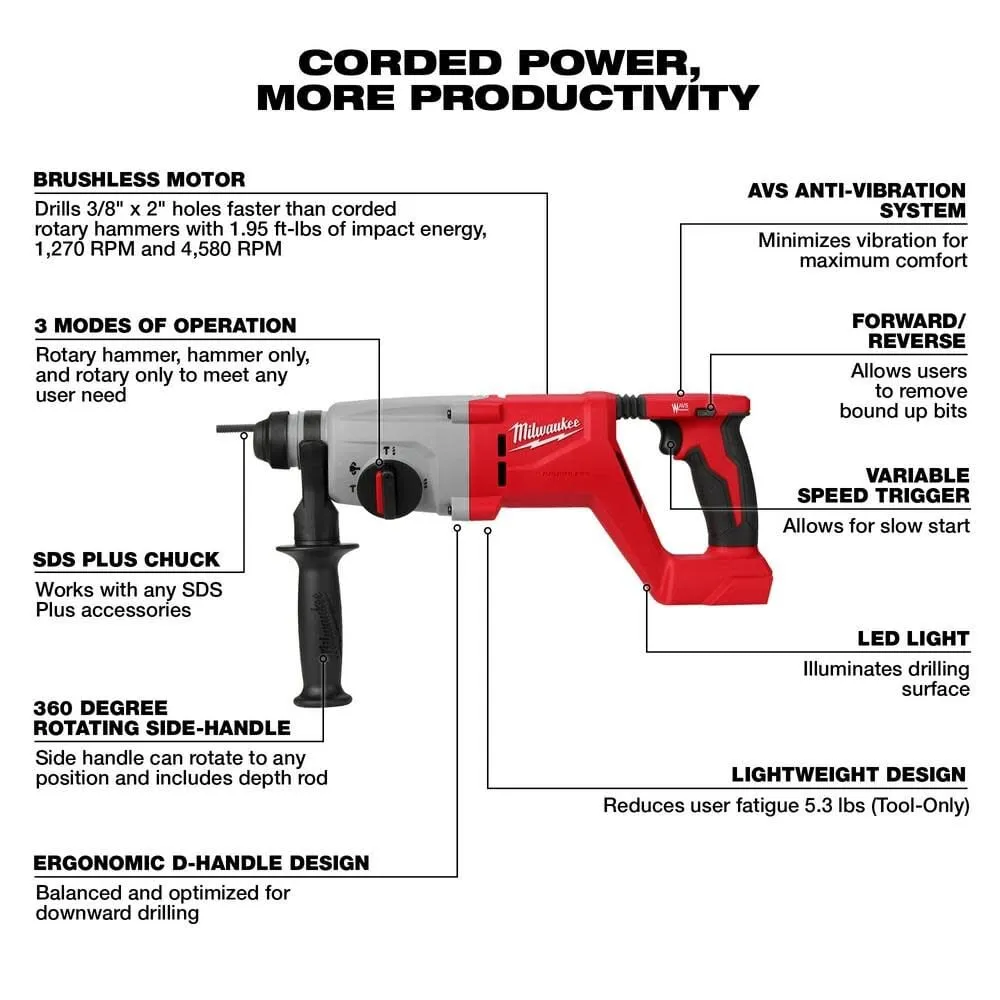

Features
- Drills 3/8" x 2" holes faster than corded 1" D-Handle Rotary Hammers
- Up to (100) 3/8" x 2" Holes per charge with M18™ XC5.0 Battery
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- Lightweight Design reduces user fatigue: 5.3 lbs (Tool-Only)
- MILWAUKEE® Brushless Motor Provides Over 50% Longer Run‑time than Brushed Motors
- REDLINK™ Intelligence constantly monitors and controls the power delivery from battery to motor ensuring maximum performance
- 1.95 ft-lbs Impact Energy
- 1,270 RPM
- 4,580 BPM
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only

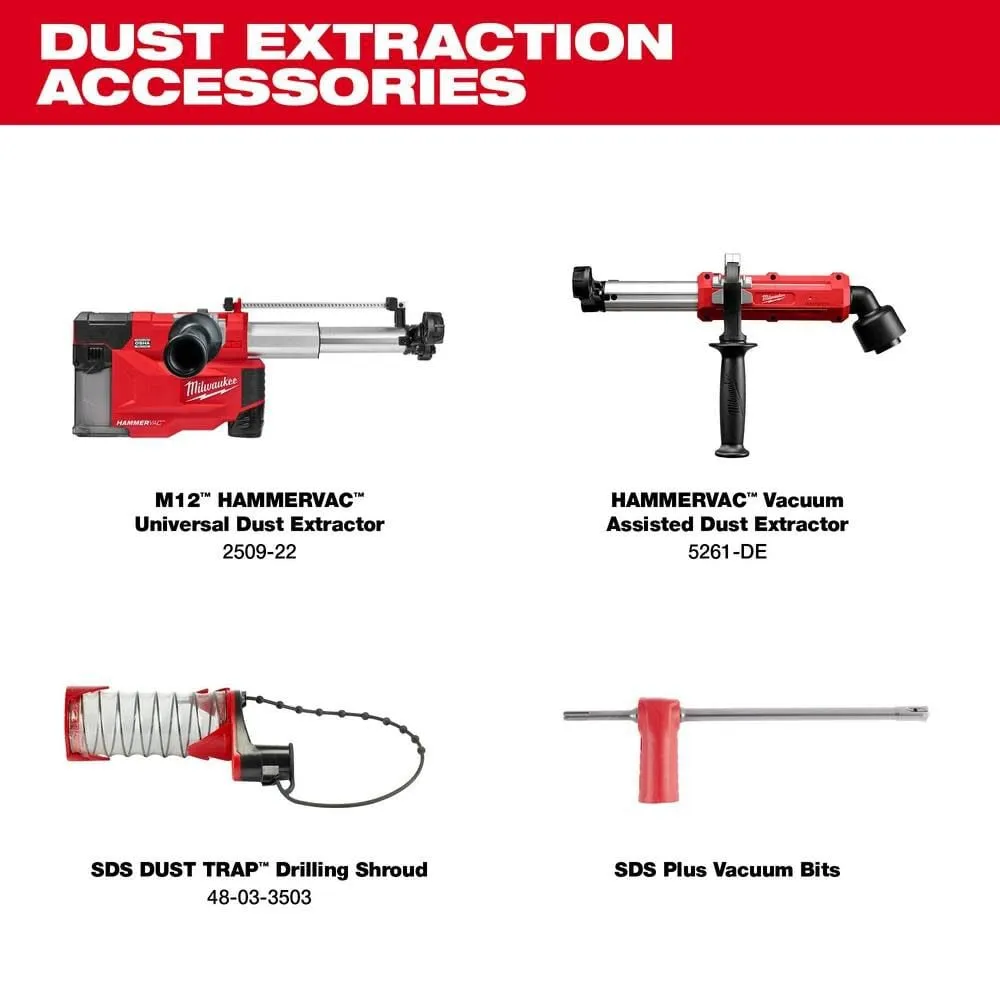

- Pair with M12™ HAMMERVAC™ Universal Dust Extractor for OSHA Table 1 Compliance (2509-22)
- 5-Year Warranty
- Part of the M18™ system, featuring over 250 solutions

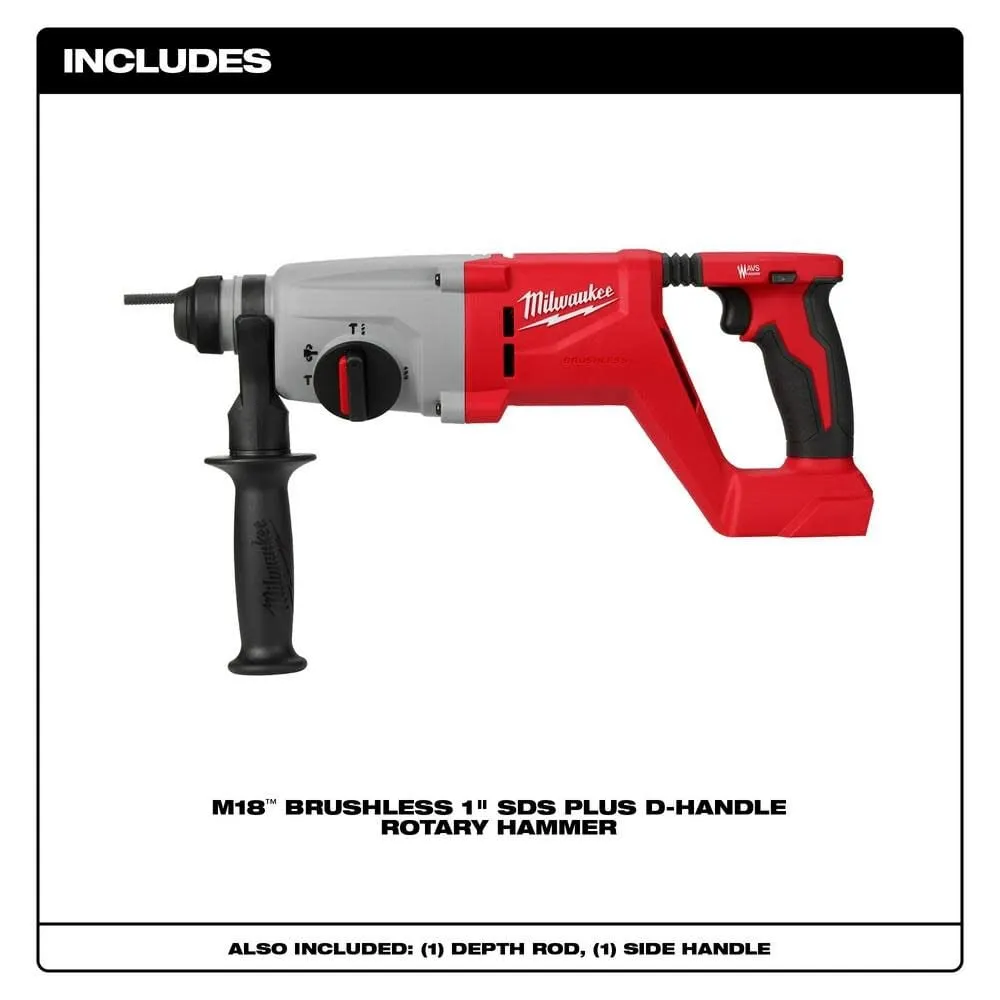

Includes
(1) M18 Brushless 1” SDS Plus D-Handle Rotary Hammer (2613-20); (1) Side Handle; (1) Depth Rod
Warranty
5 Year

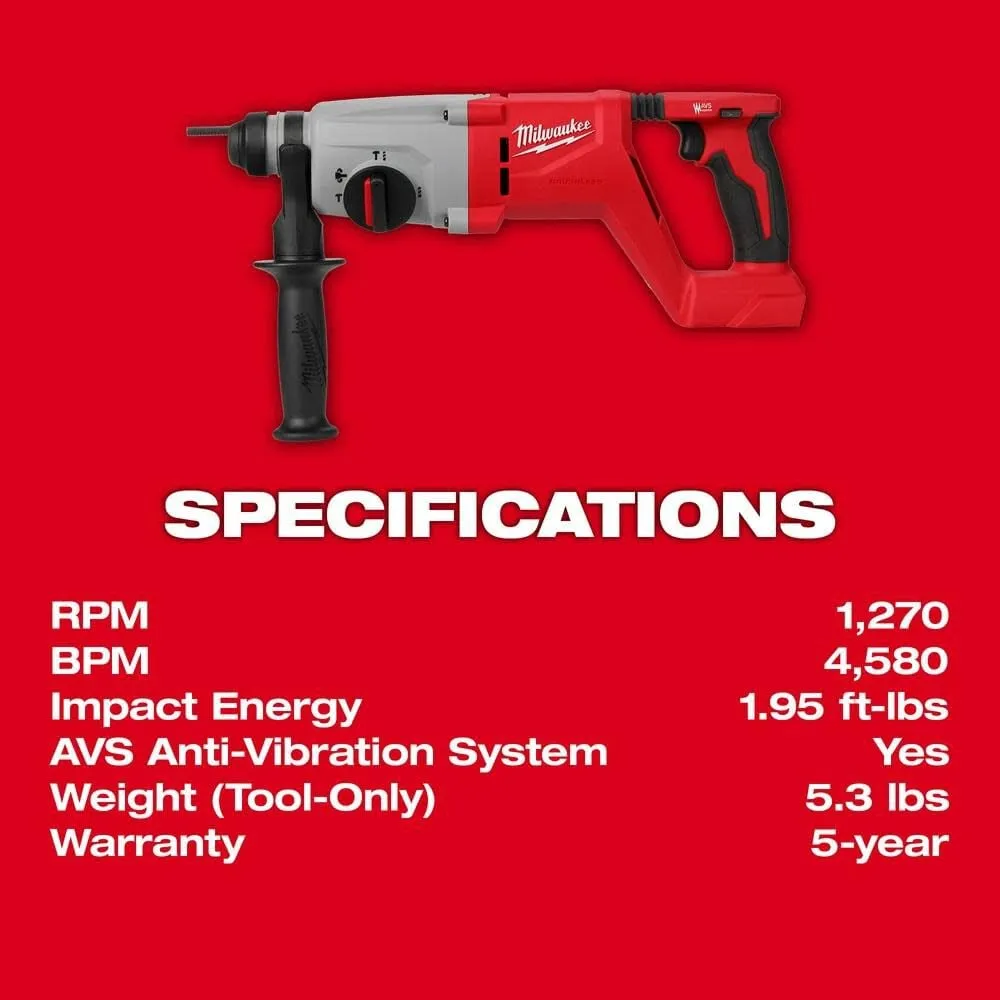

Specifications
| Accessory Type: | SDS Plus |
| Weight Excluding Battery (lb) *: | 5.3 |
| Power Tool Branding *: | Brushless (Not FUEL™) |
| Rotary Hammer Size (in) *: | 1 |
| Battery Voltage *: | 18 |
| Brushless Motor *: | Yes |
| Certifications and Listings: | cULus Listed |
| Chuck Type *: | SDS Plus |
| Color Finish: | Gray; Red |
| Core Bit Capacity *: | 2-1/2" |
| Depth Control: | Adjustable |
| Handle Type *: | D-Handle |
| Impact Energy (ft-lbs) *: | 1.95 |
| Integrated Light *: | Yes |
| Maximum Concrete Bit Size (in) *: | 1 |
| Maximum RPM *: | 1270 |
| Max RPM: | 1270 |
| Motor Type *: | Brushless |
| Condition: | New |
| Number of Batteries Required: | 1 |
| Product Storage Included: | No Case Included |
| Reverse Function *: | Yes |
| Side Handle: | Yes |
| Solid Bit Capacity: | 1" |
| Thin Wall Core Bit Capacity: | Yes |
| UL Listed: | Yes |
| Variable Speed *: | Yes |
| Product Type *: | Cordless Rotary Hammer |
| Battery System *: | M18™ |
| Blows Per Minute Range (BPM): | 4580 |
| Battery Type: | Lithium Ion |
| Drill Type: | Rotary Hammer Drilll |
| Housing Material: | Plastic |
| Soft Grip Handle: | Yes |
| Switch Type *: | Trigger |
| Material *: | Metal |
| Chuck Size (in)*: | 1 |
| Chisel Rotation *: | Yes |
| Anti Vibration System (AVS) *: | Yes |
| AUTO STOP ™ *: | Yes |
| Type of Modes *: | Rotary Hammer, Drill Only, Hammer Only, Chisel Rotation |
| Blows Per Minute (bpm) *: | 4580 |
| Power Source *: | Cordless |
| Corded Cordless: | Cordless |
| Handle Type: | Side Handle |
| Powered Tool Power Source: | Electric - Cordless |
