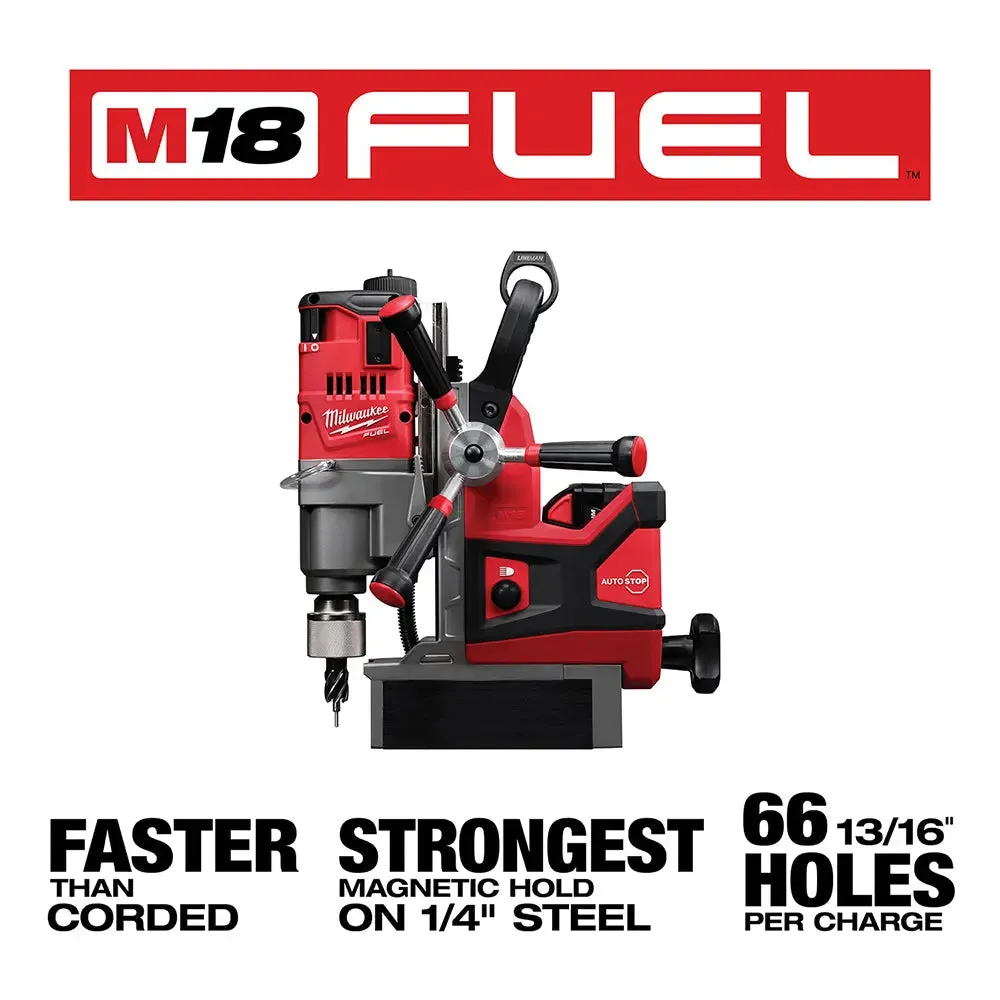

The M18 FUEL™ 1-1/2 in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4 in. steel providing a safer drilling environment in this material, and drills over (66) 13/16 in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with AutoStop™ lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE® POWERSTATE™ brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2 in. annular cutter capacity. REDLINK PLUS™ intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery pack provides 50% more power and runs 50% cooler vs REDLITHIUM™ XC batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery is fully compatible with 200 M18™ tools.
Features

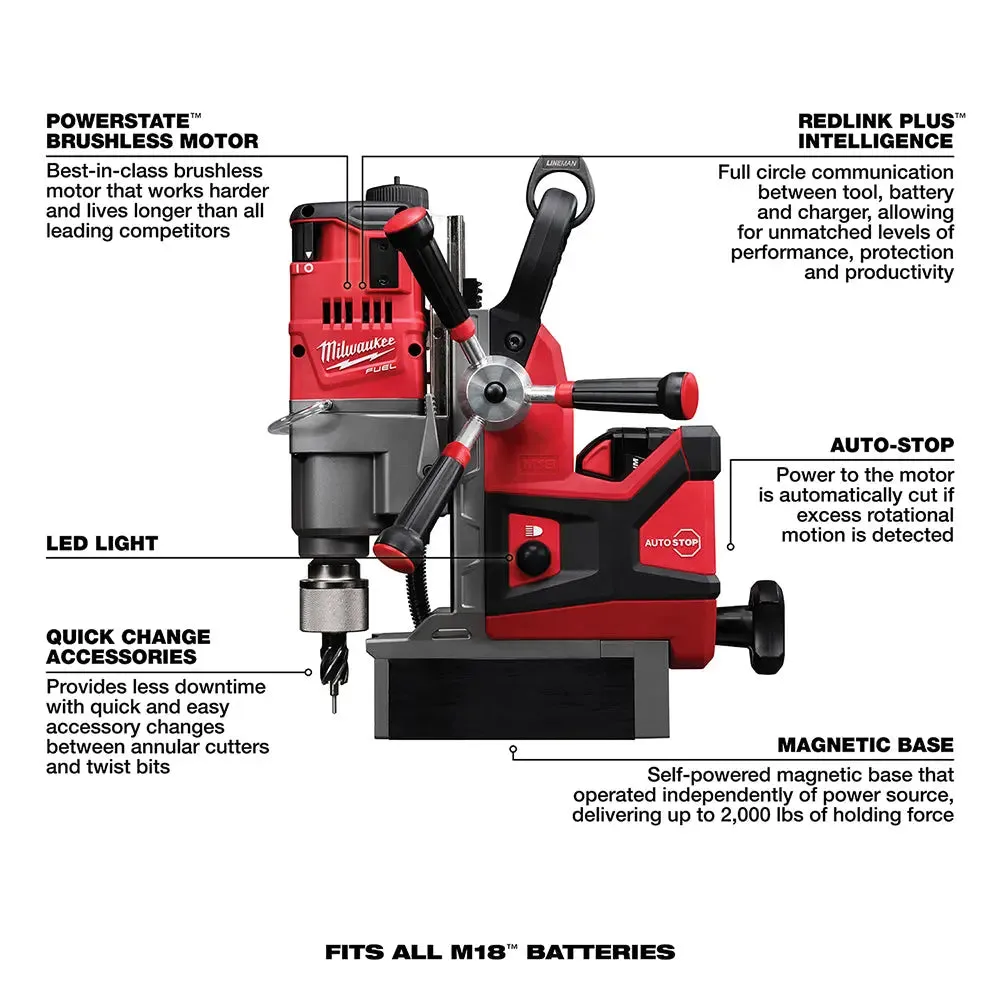

- POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
- REDLINK PLUS™ Intelligence: Provides optimized performance and overload protection using total system communication between tool, battery and charger.
- M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery delivers over (66) 13/16" holes in 1/4" steel per charge
- Self- Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force.
- 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity.
- 3 Speed Gear Box: 400/690 RPM.
- Stroke Length: 5-3/4"
- Motor Head Adjustment: 5-1/8"
- Delivers over 66 13/16" holes in 1/4" steel per battery

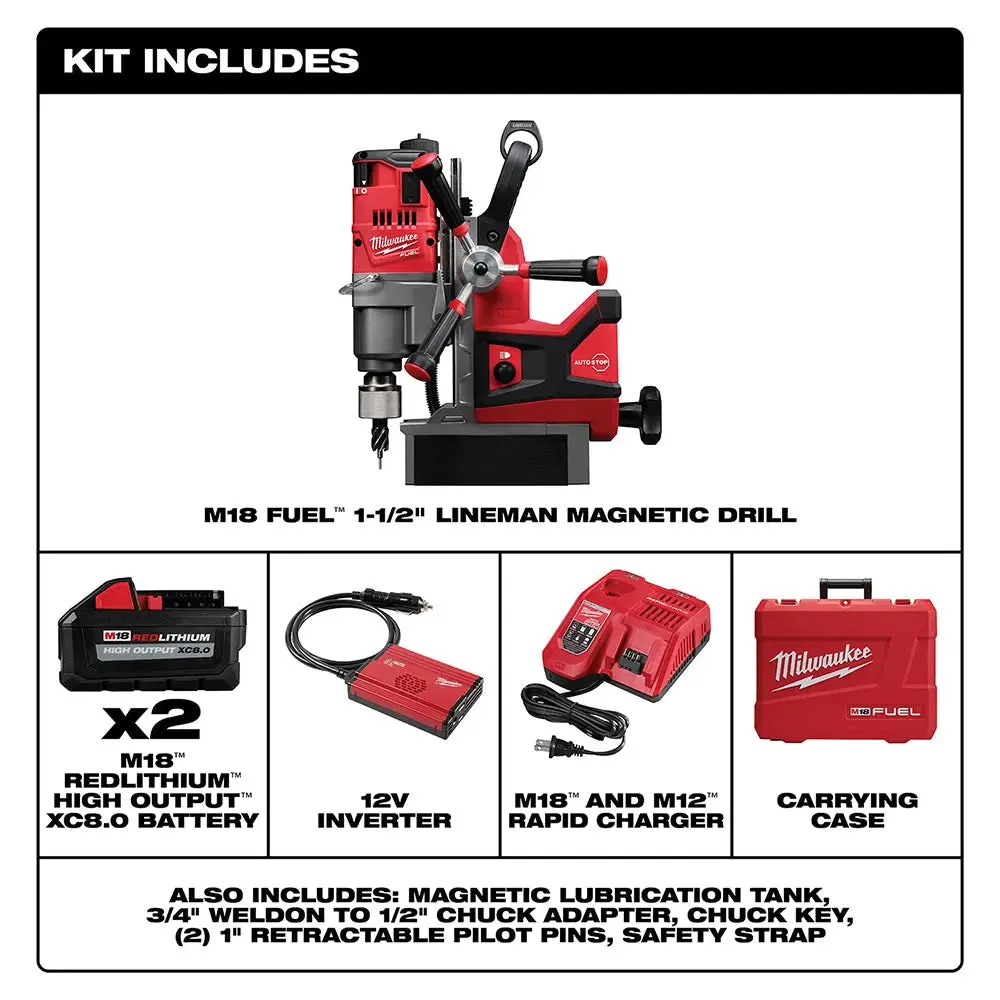

Includes

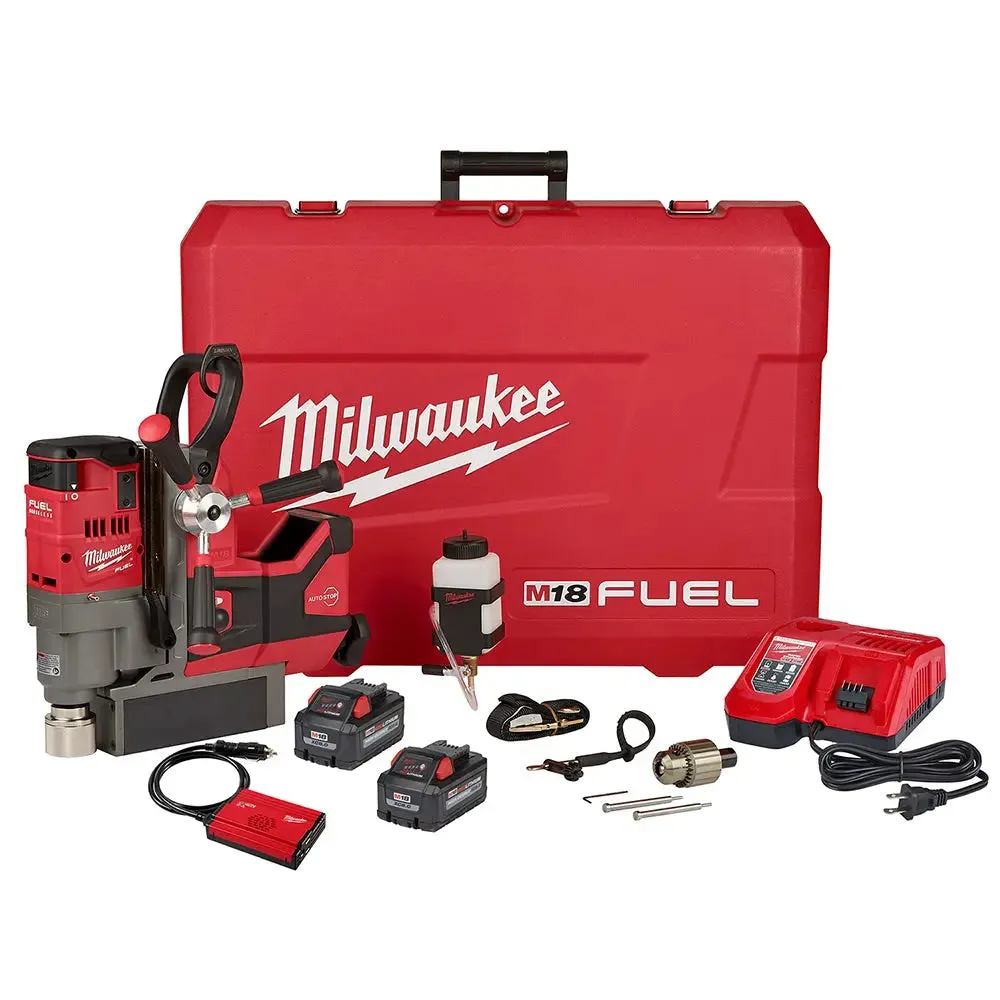

(1) M18 1-1/2" Lineman Magnetic Drill Kit (2788-22); (2) M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery Packs (48-11-1880); (1)M18 & M12 Charger; (1) 150W DC Inverter; (1) 3/4" Weldon to 1/2" Chuck Adapter; (1) Chuck Key; (1) Magnetic Lubrication Tank; (1) Safety Strap; (2) 1" Retractable Pilot Pin; (1) Carrying Case
Warranty
5 Years (Tool), 3 Years (Battery)
Specifications
| Battery Capacity : | 9Ah |
| Batteries Included / Bare Tool: | Battery Included |
| Condition: | New |
| Color Finish: | Black; Red |
| Battery Amp Hour (Ah) *: | 9 |
| Battery Voltage *: | 18 |
| UL Listed: | Yes |
| Battery System *: | M18™ |
| Brushless Motor *: | Yes |
| Chuck Type *: | All Metal |
| FUEL™ *: | Yes |
| Power Tool Branding *: | FUEL™ |
| Motor Type *: | POWERSTATE™ Brushless |
| Battery Pack Replacement: | 45KM67 |
| CSA Certified: | Yes |
| ETL Listed: | Yes |
| Magnet Type: | Permanent |
| Product Type *: | Magnetic Drill |
| Battery Pack Compatibility: | (2) 45KM67 |
| Drill Point Pressure (psi): | 750 |
| Speed Range High (rpm): | 700 |
| Speeds: | 2 |
| Badge Branding *: | FUEL |
| Material *: | Forged Steel |
| Includes Charger: | Yes |
| Magnetic Base: | Yes |
| Speed Range: | 400 / 690 rpm |
| Magnetic Holding Power (lbs): | 2000 |
| Steel Capacity (in): | 1.5 |
| Corded Cordless: | Cordless |
| Hole Depth (in): | 2 |
| Drill from Center to Base: | 1-1/2 in |
| Drill Travel (in): | 5.75 |
| Capacity Steel: | 1-1/2 in |
