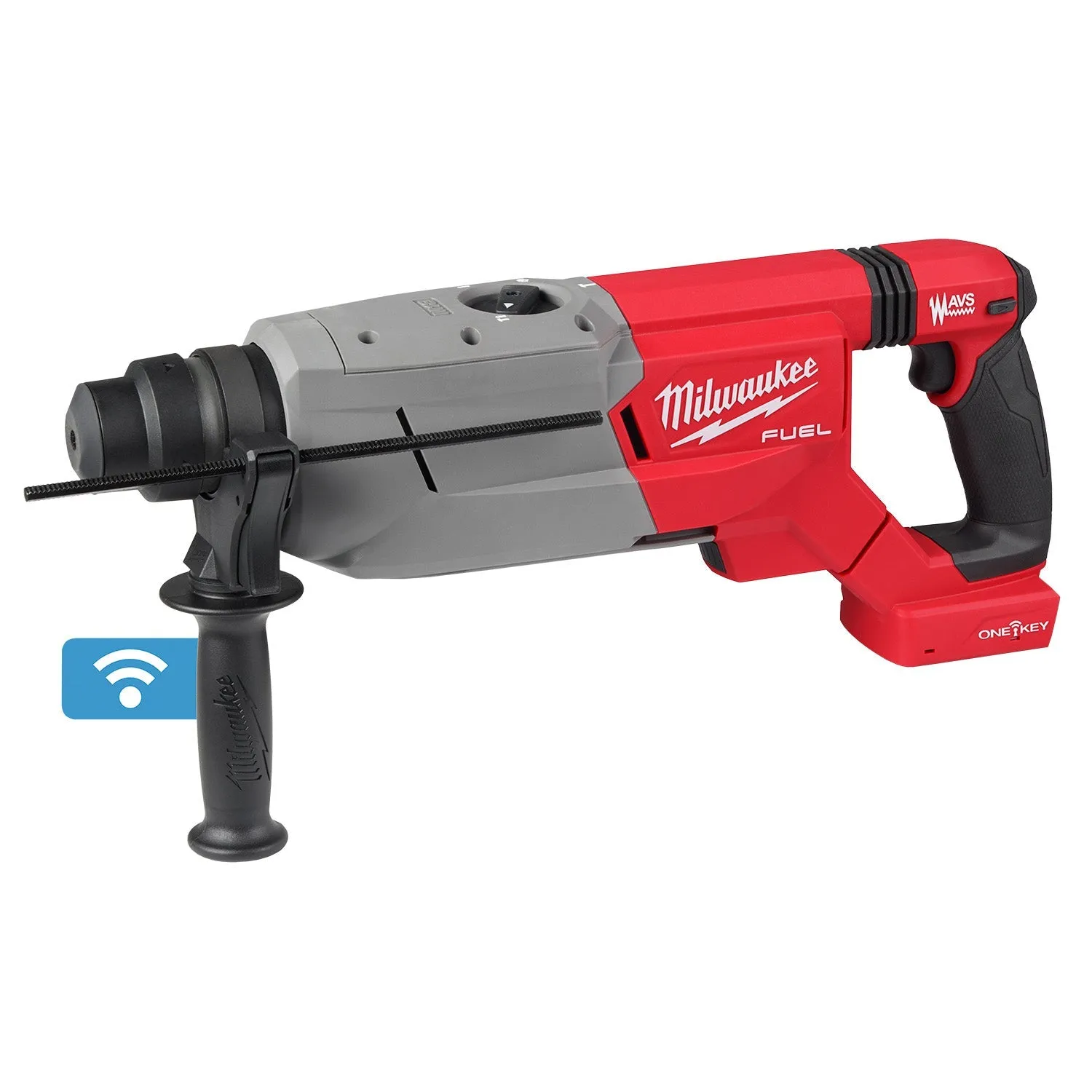

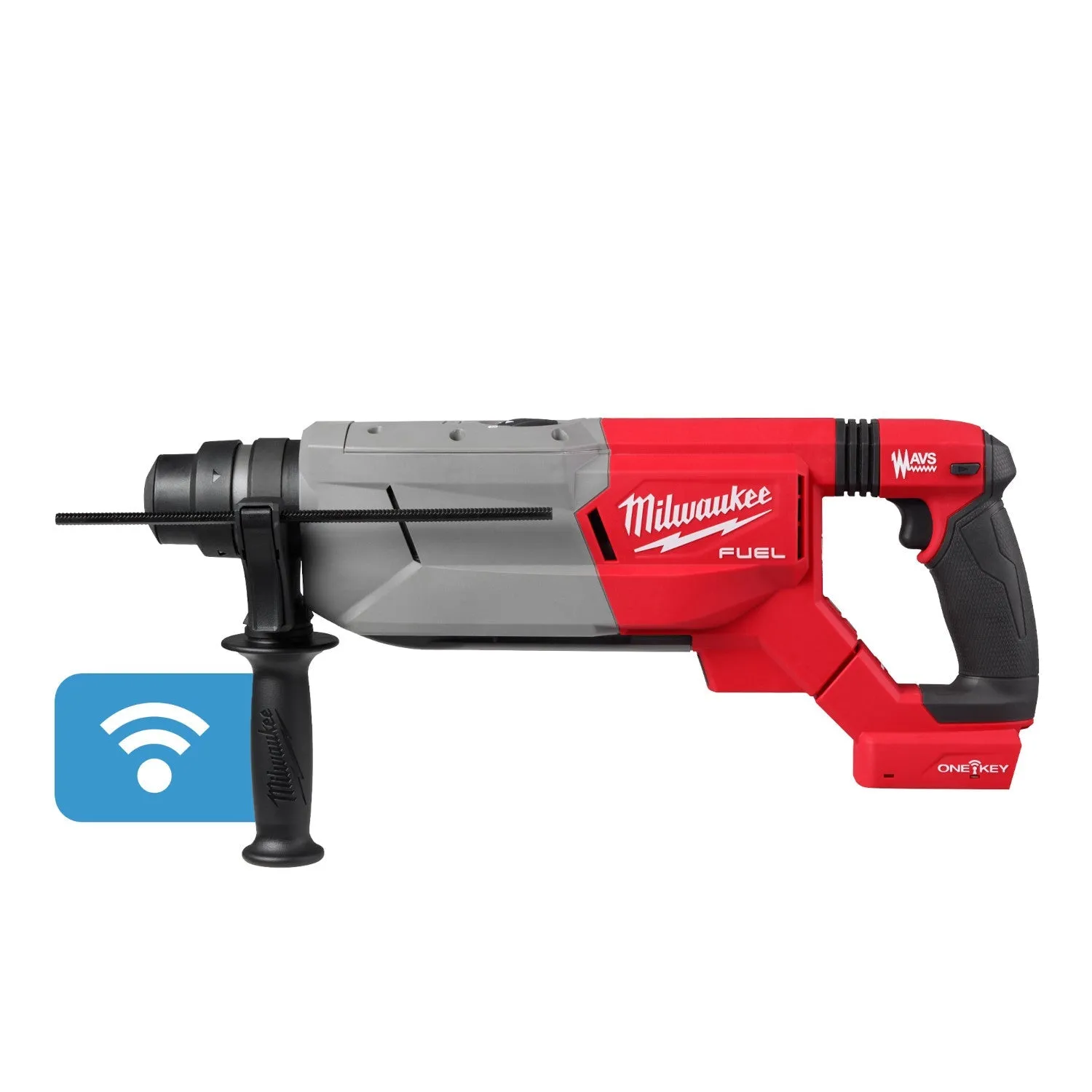

MILWAUKEE® M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with MILWAUKEE® M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. The in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. The AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries (not included).
Features
- POWERSTATE™ Brushless Motor delivers maximum power and long motor life
- REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
- The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
- 3.65 ft-lbs Impact Energy
- ONE-KEY™ technology allows for tracking, tool security, and inventory management
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
- 810 RPM
- 4,650 BPM
- Pairs with 2916-DE HAMMERVAC™ 1-1/4” Dedicated Dust Extractor
- Part of the M18™ system, featuring over 200 solutions
Warranty
5 Years
Specifications
| Battery Composition: | Lithium-Ion (Li-ion) |
| Battery Size: | 18 Volt |
| Battery Voltage *: | 18 |
| Chuck Size (in)*: | 1-1/4 |
| Color Finish: | Black; Gray; Red |
| Handle Material: | Rubber |
| Impact Energy (ft-lbs) *: | 3.65 |
| Integrated Light *: | Yes |
| LED Charge Indicator: | Yes |
| Maximum RPM *: | 810 |
| Max RPM: | 810 |
| Condition: | New |
| Product Storage Included: | No Case Included |
| Reverse Function *: | Yes |
| Side Handle: | Yes |
| Thin Wall Core Bit Capacity: | Yes |
| Variable Speed *: | Yes |
| Weight Excluding Battery (lb) *: | 9.2 |
| Weight - Battery Installed (lb): | 11.5 |
| Depth Control: | Adjustable |
| UL Listed: | Yes |
| Blows Per Minute (bpm) *: | 4650 |
| Battery Charger Input Voltage *: | 18 |
| Brushless Motor *: | Yes |
| Chuck Type *: | SDS Plus |
| Core Bit Capacity *: | 3" |
| Maximum Concrete Bit Size (in) *: | 1.25 |
| Motor Type *: | POWERSTATE™ Brushless |
| Switch Type *: | Trigger |
| Product Type *: | Cordless Rotary Hammer |
| Handle Type *: | D-Handle |
| ONE-KEY™ Enabled *: | Yes |
| FUEL™ *: | Yes |
| Power Tool Branding *: | FUEL™ |
| Rotary Hammer Size (in) *: | 1-1/4 |
| Battery System *: | M18™ |
| Battery Type: | Lithium Ion |
| Drill Type: | Rotary Hammer Drilll |
| Housing Material: | Plastic |
| Soft Grip Handle: | Yes |
| Badge Branding *: | FUEL |
| Material *: | Metal |
| Type of Modes *: | Rotary Hammer, Drill Only, Hammer Only, Chisel Rotation |
| Chisel Rotation *: | Yes |
| Anti Vibration System (AVS) *: | Yes |
| AUTO STOP ™ *: | Yes |
| Power Source *: | Cordless |
| Corded Cordless: | Cordless |
| Handle Type: | Side Handle |
| Powered Tool Power Source: | Electric - Cordless |
